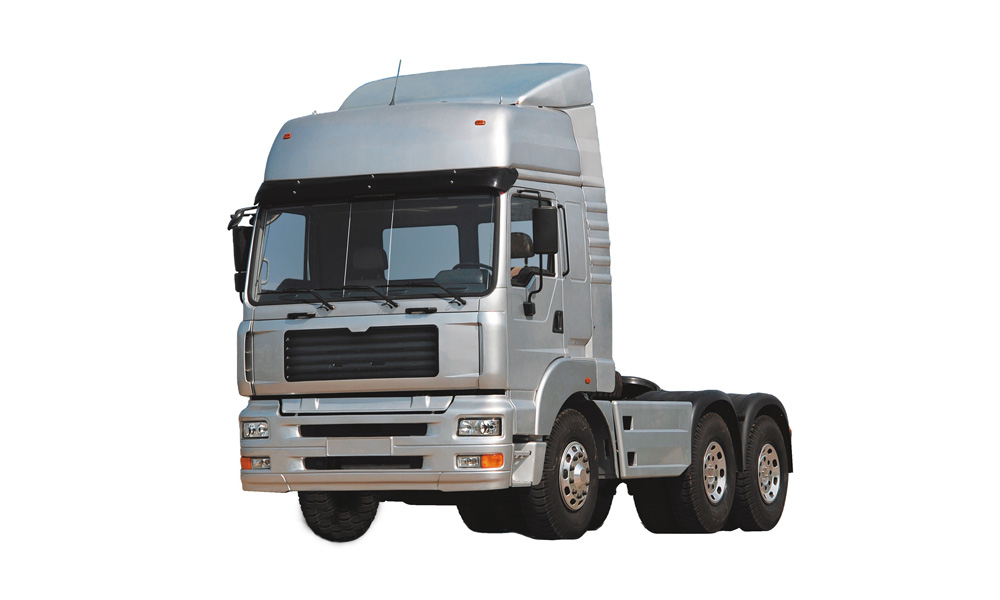

| Model | M1929D |
| Engine model | Steyr WD615.50 |
| Engine Type | Diesel, 4-stroke, direct injection engine |
| Engine | 6-cylinder in-line with water cooling, turbocharged & intercooled |
| Maximum output according to DIN | 213 KW at 2200 rpm 290HP |
| Displacement | 9.726 L |
| Min. fuel consumption | ≤213 g/ kwh |
| Displacement criterion | EUR 2 |
| Transmission Model | Fuller RT-11509C |
| Operating type | Manual shift with hydraulic assistant |
| Transmission Type | With constant-mesh-gear synchronizer |
| Constant-mesh | 9 forward & 1 reverse 9 speed shift |
| Axle | Front axle model: Steyr 6.5T Rear axle model: Steyr 13T |
| Steering system | Model: ZF8098, (Germany ZF , made in China) |
| Electrics Operating voltage | 24V, negative grounded |
| Wheelbase | 4,000 mm |
| Cargo body size | 12 CBM |
| Driver | 2030*2490*2483 mm |
| Gross vehicle weight | 19,000 kg |
| Maximum loading capacity | 10,000 kg |
| Fuel tank capacity | 300 L |
| Maximum driving speed | 92 km/h |
