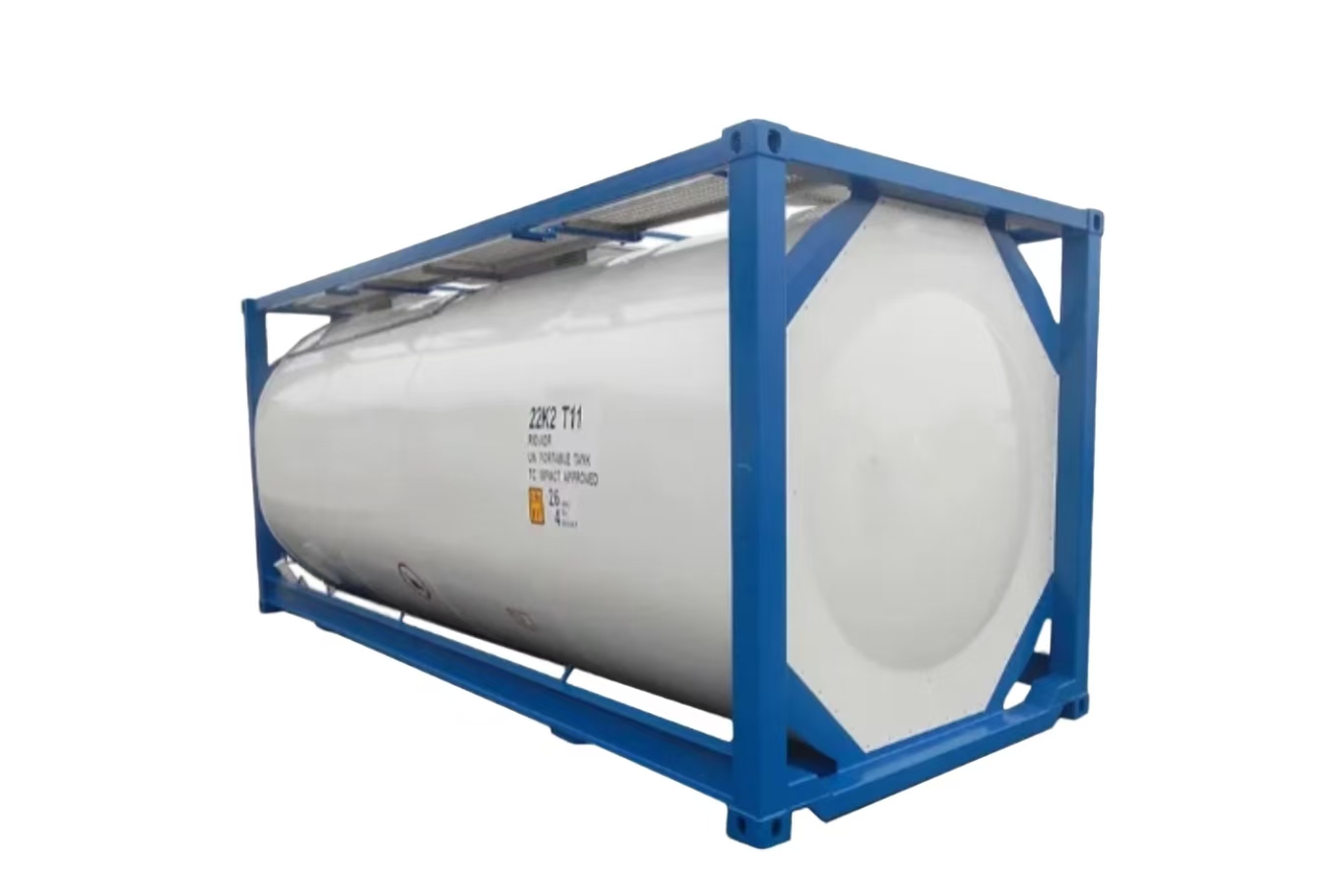

Specifications of ISO Tank Container:
| Tank Type | UN T50 Protable 20ft ISO Tank Container | |
| Full Frame | ||
| Aplicable Medium | Liquid Chemicals etc. | |
| Vessel Design Code | ASME VIII DIV.1 | |
| Approval Standard | IMDG, US DOT CFR49,RID/ADR,CSC,TC,TIR,UIC,ISO | |
| Main Data | Frame Dimensions | 6058*2438*2591 |
| Capacity | 21000L | |
| Payload | 32490 Kg | |
| Working | Pressure | 17 Bar(Max) |
| Temperature | -40 to 50℃ | |
| Material | Frame | Q345-D-GB/T1591 |
| Shell & Head | SA-612MN | |
| Detail | Shell Nominal Thickness | 20mm |
| Discharge | DF80(Top)&3''BSP(Bottom) | |
| Valves | Safety Relief Valve, Gas Line | |
| Liquid Line | ||
| Other | Manhole, Thermometer,Presssure Gauge,Document Holder | |
| Decals, Date plate,Valve Cabinet, Provision For Baffles | ||
Company Introduction
Our "QlXING" is one professional manufacturer, factory and supplier of iso tanker container, since year 1980located in Suizhou City, Hubei Province, China. We are also supplying : LPG storage tank & full set of fitings,for LPG filing station, LPG tank truck / Bobtail ,; LPG semi trailer , Fuel tank truck, for delivering diesel, gasolineetc.

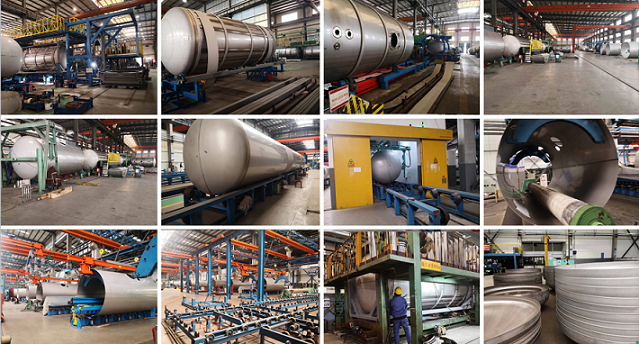

Workshop & Manufacturing:

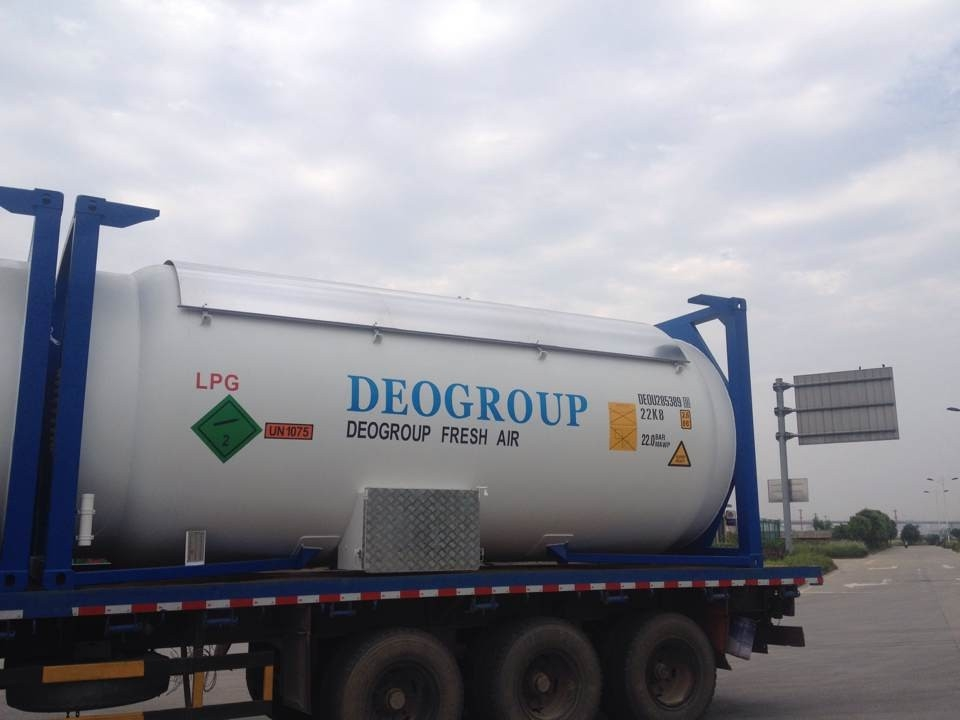

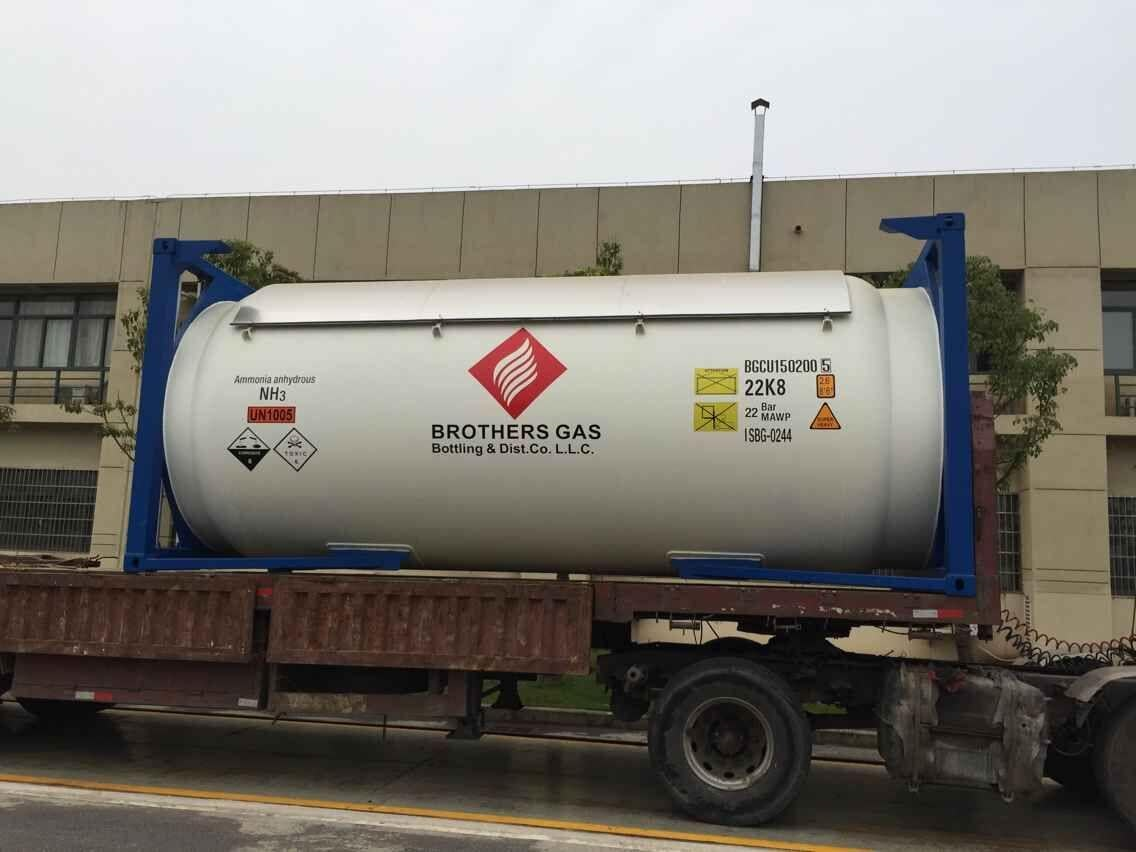

ISO Tank Container To Customers:
Contact Information:
Leo.Li(Mr）
Sales Department
E-mail: sales1@qixingauto.com
Address:Suizhou city, Hubei Province, China
Mobile/Wechat/WhatsApp:+86-18371872056
